DTC P06A2-00: Compressor Valve Circuit High Input: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC P06A2:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

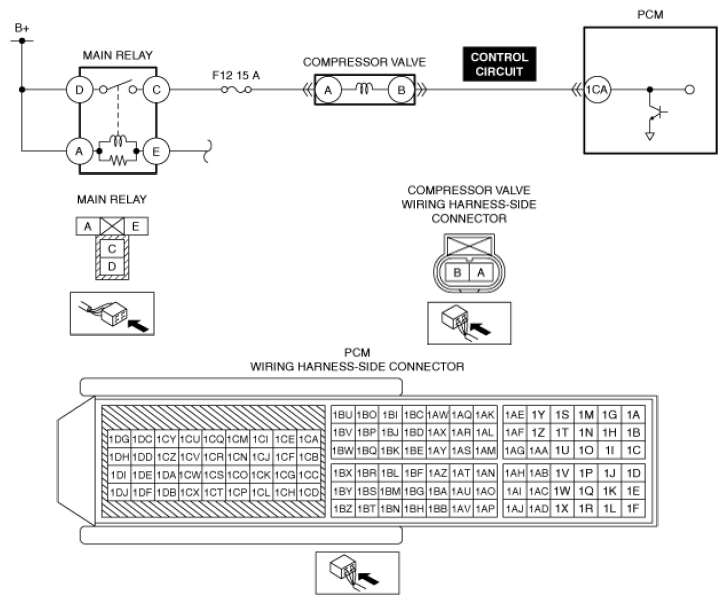

System malfunction location	Compressor valve circuit high input
Detection condition	The compressor valve control voltage at the PCM terminal 1CA is high for a continuous 5 s relative to the PCM control signal.
Fail-safe	Not applicable
Possible cause	Compressor valve connector or terminals malfunction PCM connector or terminals malfunction Short to power supply in compressor valve control circuit Compressor valve malfunction (built-into A/C compressor) PCM malfunction
Courtesy of MAZDA MOTORS CORP.
