DTC P0629-00: Fuel Pump Control Module - Current Error (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0629:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE


System malfunction location	Fuel pump control module: Current error
Detection condition	The PCM detects over-current during the fuel pump control module control.
Fail-safe	Stops fuel pump control

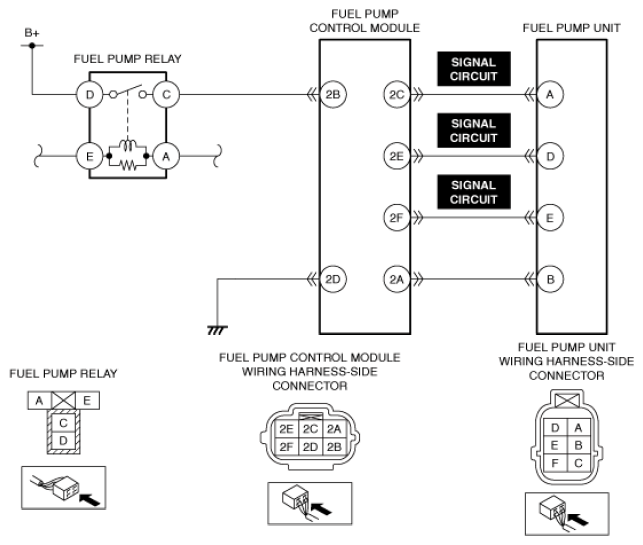

Possible cause	Fuel pump unit connector or terminals malfunction Fuel pump unit malfunction Fuel pump control module connector or terminals malfunction Short to ground in fuel pump unit signal circuit Short to power supply in fuel pump unit signal circuit Fuel pump control module malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
