DTC P0327-00: KS Circuit Low Input: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

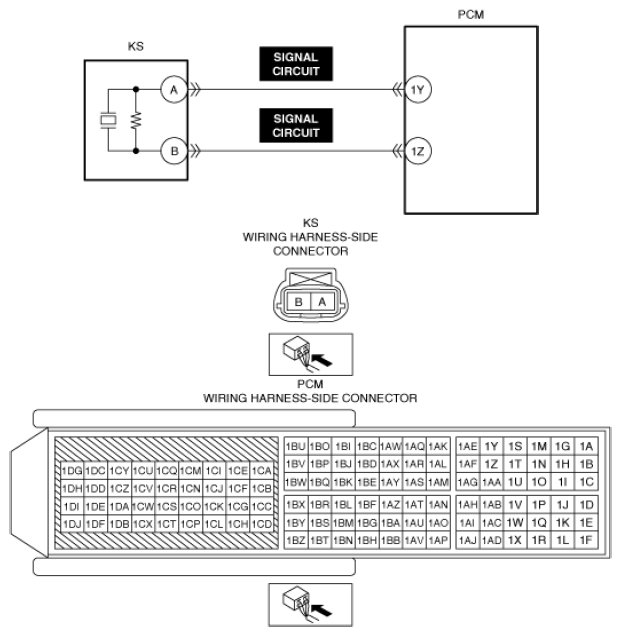

DTC P0327:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
KS circuit low input |
| Detection condition |
- The PCM monitors input signal from the KS. If the input voltage is low for 5 s, the PCM determines that the KS circuit has a malfunction.
|
| Fail-safe |
- Sets the knocking spark retard correction value of the ignition control to the fixed value.
|
| Possible cause |
- KS connector or terminals malfunction
- KS malfunction
- PCM connector or terminals malfunction
- Short to ground in KS signal circuit
- Short circuit in KS signal circuits
- Open circuit in KS signal circuit
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
