Home >> Mazda >> 2021 >> CX-30 Turbo Premium >> Repair and Diagnosis >> External Pages >> Different car >> Section 69 (Refrigerant System) >> Refrigerant Pressure Check (Us) >> SKYACTIV-G (VIN L & VIN M >> HFC-134a

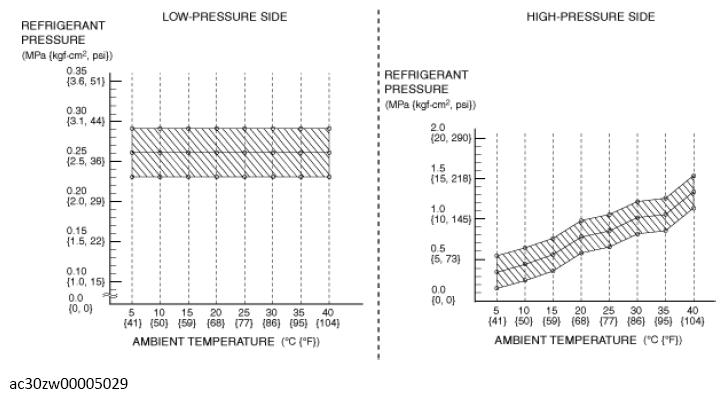

SKYACTIV-G (VIN L & VIN M: HFC-134a

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
G13559108Courtesy of MAZDA MOTORS CORP.
