Rear Vent Actuator Removal/Installation (Auto A/C): R.H.D.

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Shift lever knob (MTX)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    9. Rear console
    10. Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

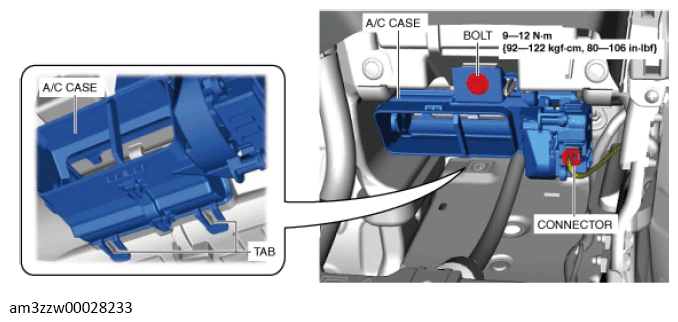

    Fig 1: A/C Case Bolt With Torque Specification
    G13559313Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the bolt.
  5. Detach the tabs and remove the A/C case.
  6. Remove the screws.

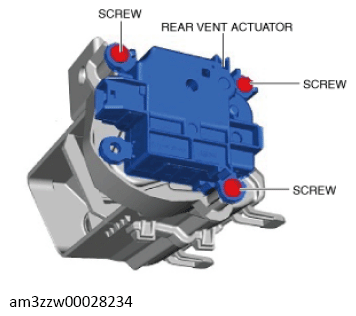

    G13559314Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear vent actuator.
  8. Install in the reverse order of removal.
