Rear Vent Actuator Removal/Installation (Auto A/C): L.H.D.

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Shift lever knob (MTX)
3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
4. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
7. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
9. Rear console
10. Rear vent duct (See REAR VENT DUCT REMOVAL/INSTALLATION .)
Disconnect the connector.

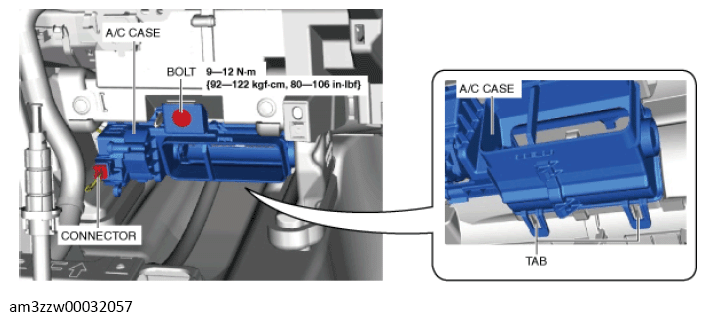

Fig 1: A/C Case Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the bolt.
Detach the tabs and remove the A/C case.

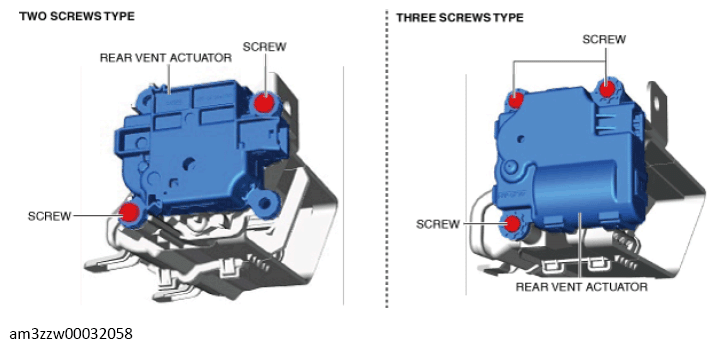

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the rear vent actuator.
Install in the reverse order of removal.
