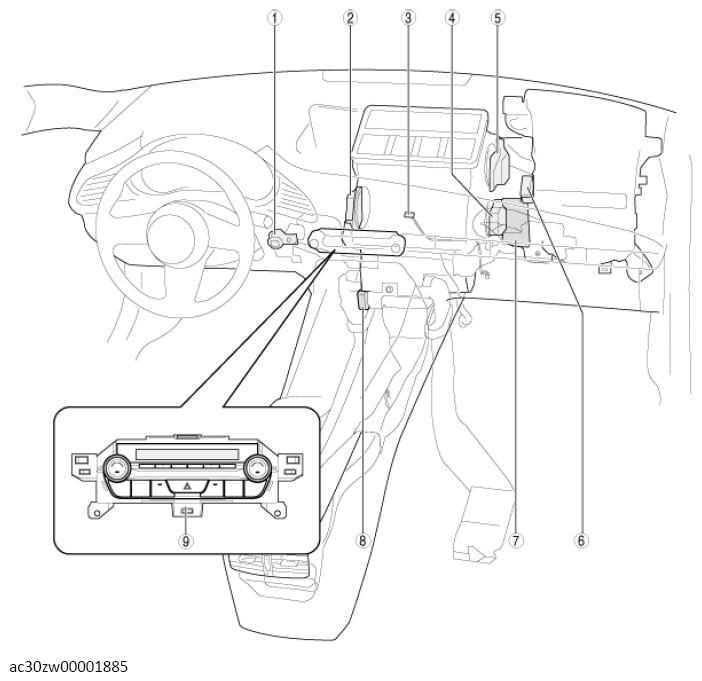

Inside Cabin: L.H.D.

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
2	Driver-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)) .) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
4	Passenger-side air mix actuator (See AIR MIX ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
5	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL [FULL-AUTO AIR CONDITIONER (US)] .) (See AIRFLOW MODE ACTUATOR INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
6	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
7	Dash-electrical supply unit (See DASH-ELECTRICAL SUPPLY UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See DASH-ELECTRICAL SUPPLY UNIT INSPECTION [FULL-AUTO AIR CONDITIONER (US)] .)
8	Rear vent actuator (With rear vent) (See REAR VENT ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See REAR VENT ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
9	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)) .)
