Air Mix Actuator Removal (Auto A/C) (Us): Driver-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the temperature control to MAX COLD.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    6. Driver-side knee air bag module (See KNee AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

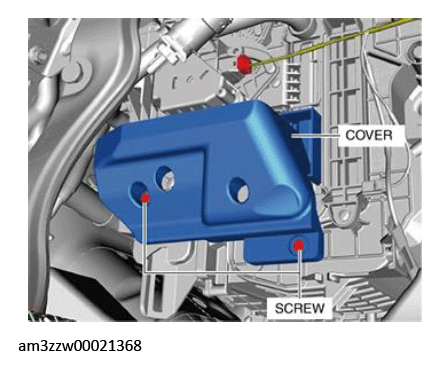

  4. Remove the screws.
    G13177454Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.

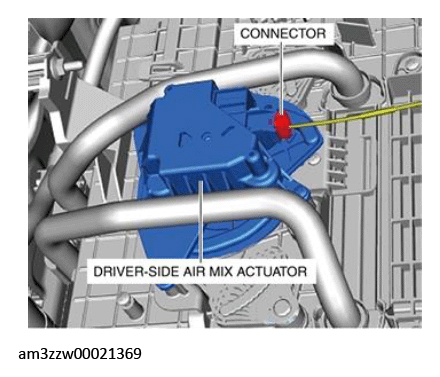

  6. Disconnect the connector.
    G13177455Courtesy of MAZDA MOTORS CORP.

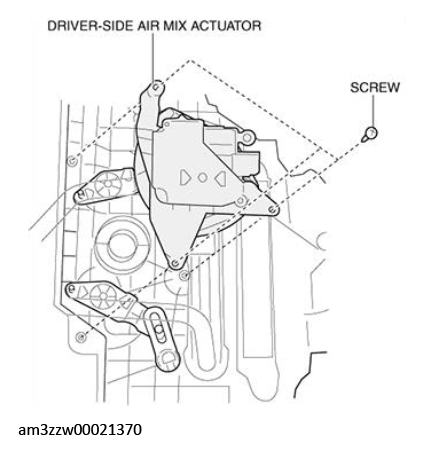

  7. Remove the screws.
    G13177456Courtesy of MAZDA MOTORS CORP.

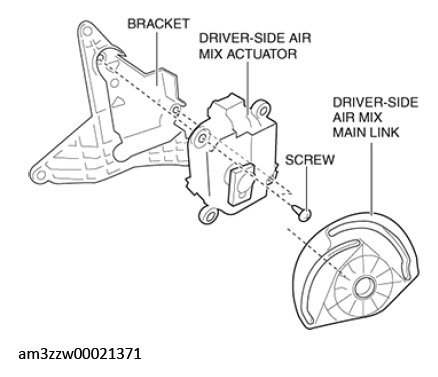

  8. Remove the driver-side air mix actuator.
  9. Remove the driver-side air mix main link.
    G13177457Courtesy of MAZDA MOTORS CORP.
  10. Remove the screws.
  11. Remove the bracket.
