Air Mix Actuator Installation (Auto A/C) (Us): Driver-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

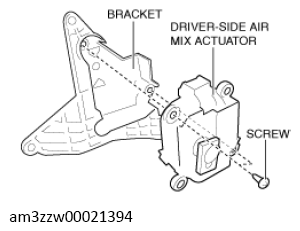

Install the air mix actuator to the bracket.

Courtesy of MAZDA MOTORS CORP.
Install the screws.

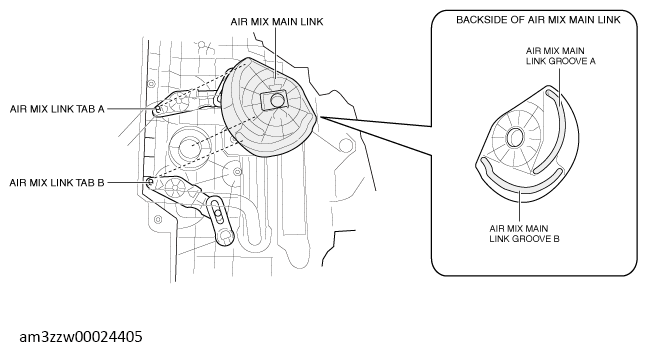

Align the following air mix link tabs with the air mix main link grooves and install the air mix main link.
- Air mix link tab A and air mix main link groove A
- Air mix link tab B and air mix main link groove B
Courtesy of MAZDA MOTORS CORP.

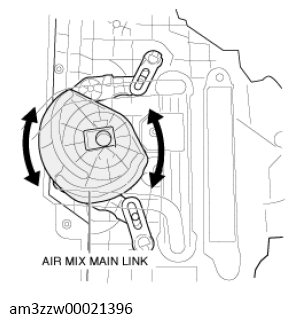

Move the air mix main link in the direction shown in the illustration and verify that it rotates smoothly.

Courtesy of MAZDA MOTORS CORP.

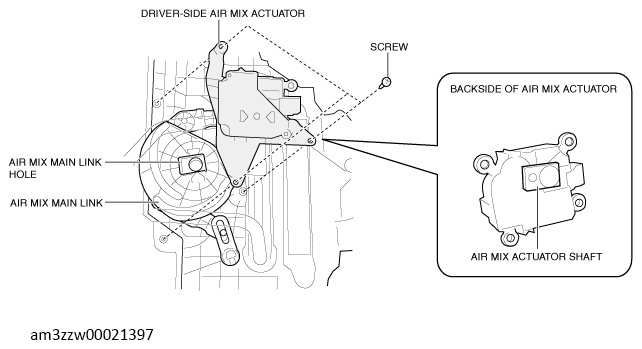

Align the air mix main link hole with the shape of the air mix actuator shaft, and install the air mix actuator.
NOTE:
- The air mix main link is not secured, therefore hold it with your hand so that it does not detach.
Courtesy of MAZDA MOTORS CORP.
Install the screws.

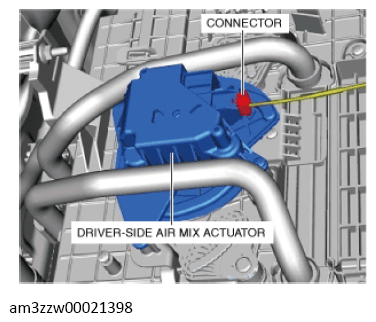

Connect the connector.

Courtesy of MAZDA MOTORS CORP.

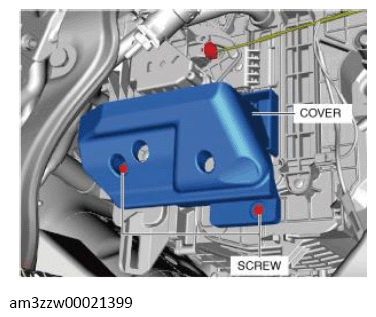

Install the cover.

Courtesy of MAZDA MOTORS CORP.
Install the screws.
Install the following parts:
1. Driver-side knee air bag module (See KNee AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
2. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
4. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
6. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
