Operation Using Remote Transmitter Button Not Possible: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
OPERATION USING REMOTE TRANSMITTER BUTTON NOT POSSIBLE [SECURITY AND LOCKS] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
- The door lock/unlock operation using the remote transmitter button is not possible.
- The trunk open operation using the remote transmitter button is not possible.
|
| Possible cause |
- Remote transmitter malfunction
- Effect of non-standard equipment (any control unit with built-in micro computer such as radio set, mobile telephone, and TV)
- Connector or terminal malfunction of the following parts:

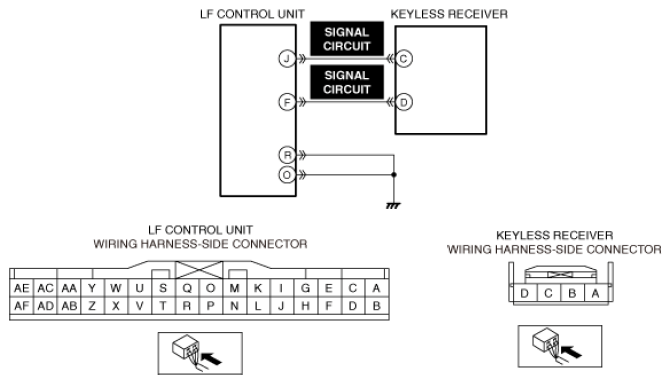

- Short to ground or open circuit in keyless receiver signal circuit
- Keyless receiver malfunction
- LF control unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
