Liftgate Does Not Open: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

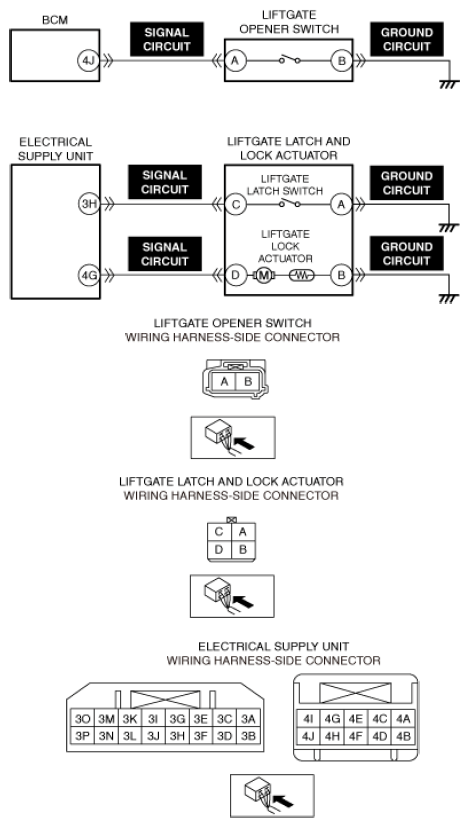

LIFTGATE DOES NOT OPEN [SECURITY AND LOCKS] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
- Liftgate does not open even if liftgate opener switch is pressed
|
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Liftgate opener switch
- Liftgate latch and lock actuator
- BCM
- Open circuit in liftgate opener switch signal circuit
- Open circuit in liftgate opener switch ground circuit
- Short to ground or open circuit in liftgate latch and lock actuator signal circuit
- Open circuit in liftgate latch and lock actuator ground circuit
- Liftgate opener switch malfunction
- Liftgate latch and lock actuator malfunction
- Electrical supply unit malfunction
- BCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
