DTC B13F2-09: Power Window Motor (Passenger's Side) Malfunction (BCM) (Us): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B13F2:09 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Power window motor (passenger's side) malfunction |
| Detection condition |
- The door-electrical supply unit (passenger's side) detects the power window motor (passenger's side) malfunction.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Power window motor (passenger's side) connector or terminal malfunction
- Door-electrical supply unit (passenger's side) connector or terminal malfunction

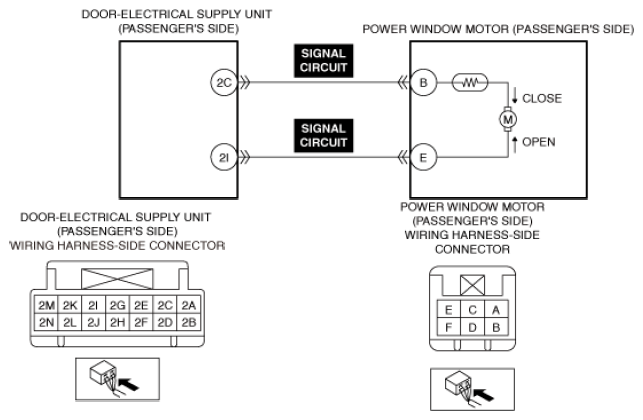

- Short to ground in power window motor (passenger's side) signal circuit
- Short to power supply in power window motor (passenger's side) signal circuit
- Open circuit in power window motor (passenger's side) signal circuit
- Power window motor (passenger's side) malfunction
- Door-electrical supply unit (passenger's side) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
