DTC B1329-14: Rear Turn Light (LH) Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1329:14 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Rear turn light (LH) circuit malfunction |
| Detection condition |

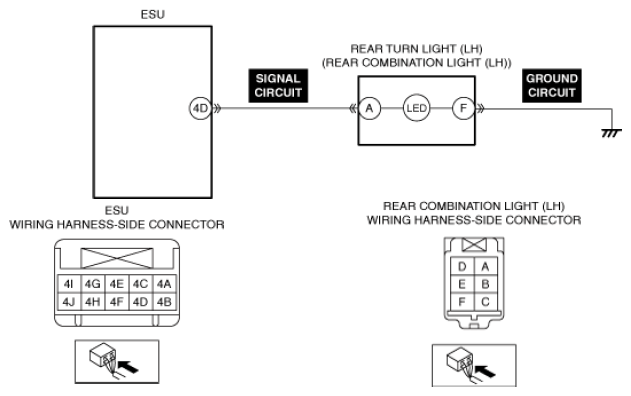

- The electrical supply unit (ESU) detects an open circuit or short to ground in the rear turn light (LH) circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear combination light (LH) connector or terminal malfunction
- Open circuit in rear turn light (LH) ground circuit
- Electrical supply unit (ESU) connector or terminal malfunction
- Short to ground in rear turn light (LH) signal circuit
- Open circuit in rear turn light (LH) signal circuit
- Rear turn light (LH) malfunction
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
