DTC B1277-14: Back-Up Light Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

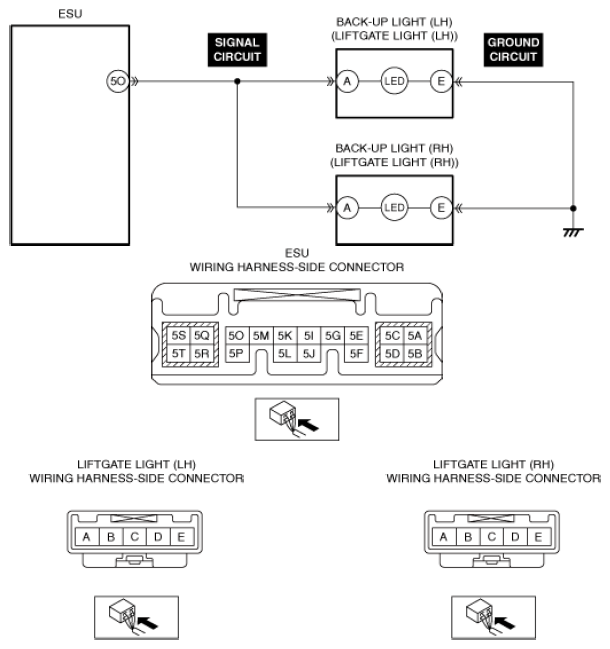

DTC B1277:14 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Back-up light circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects an open circuit or short to ground in the back-up light circuit.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Liftgate light (LH) connector or terminal malfunction
- Liftgate light (RH) connector or terminal malfunction
- Open circuit in back-up light ground circuit
- Electrical supply unit (ESU) connector or terminal malfunction
- Short to ground in back-up light signal circuit
- Open circuit in back-up light signal circuit
- Back-up light (LH) malfunction
- Back-up light (RH) malfunction
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
