DTC B11F6-09: Power Outer Mirror (Driver's Side) Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

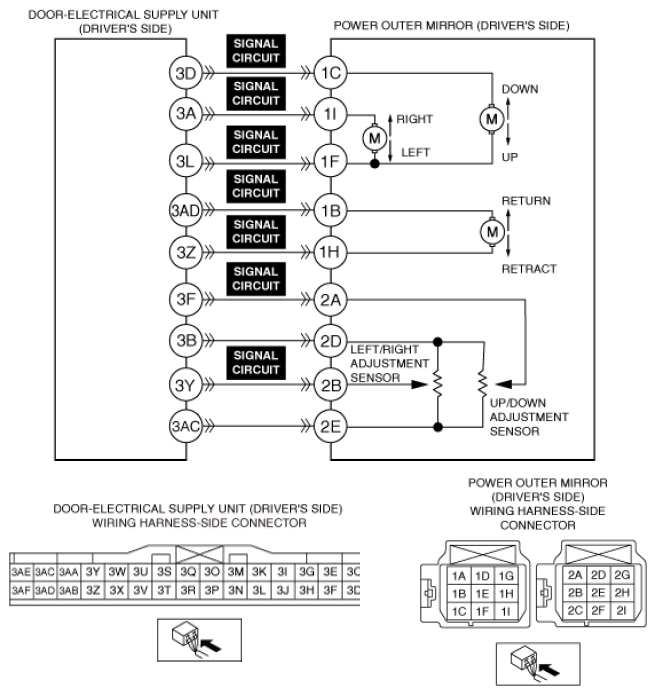

DTC B11F6:09 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Power outer mirror (driver's side) malfunction |
| Detection condition |
- The door-electrical supply unit (driver's side) detects the power outer mirror (driver's side) malfunction.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Power outer mirror (driver's side) connector or terminal malfunction
- Door-electrical supply unit (driver's side) connector or terminal malfunction
- Short to ground in power outer mirror (driver's side) signal circuit
- Short to power supply in power outer mirror (driver's side) signal circuit
- Open circuit in power outer mirror (driver's side) signal circuit
- Power outer mirror (driver's side) malfunction
- Door-electrical supply unit (driver's side) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
