DTC B1178-11: Liftgate Latch Switch Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

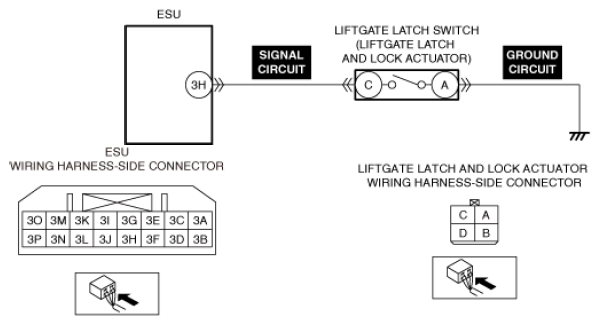

DTC B1178:11 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Liftgate latch switch circuit malfunction |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the liftgate latch switch circuit for a continuous 2 times.
Preconditions
- The liftgate closed (liftgate latch switch off).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Liftgate latch and lock actuator connector or terminal malfunction
- Liftgate latch switch malfunction
- Electrical supply unit (ESU) connector or terminal malfunction
- Short to ground in liftgate latch switch signal circuit
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
