DTC B1175-11: Front Door Latch Switch (Driver's Side) Circuit Malfunction (BCM) (Us): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

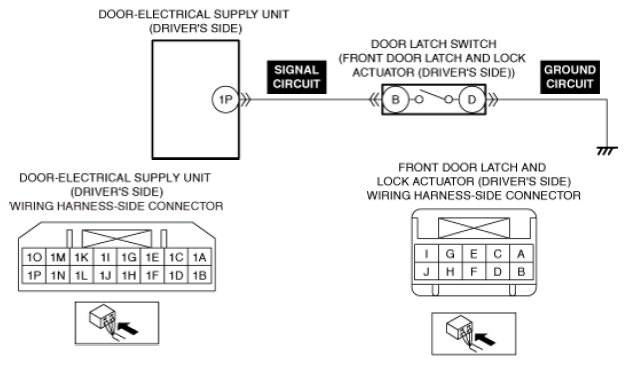

DTC B1175:11 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Front door latch switch (driver's side) circuit malfunction |
| Detection condition |
- The door-electrical supply unit (driver's side) detects a short to ground in the front door latch switch (driver's side) circuit for a continuous 2 times.
Preconditions
- The front door (driver's side) closed (front door latch switch (driver's side) off).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front door latch and lock actuator (driver's side) connector or terminal malfunction
- Front door latch switch (driver's side) malfunction
- Door-electrical supply unit (driver's side) connector or terminal malfunction
- Short to ground in front door latch switch (driver's side) signal circuit
- Door-electrical supply unit (driver's side) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
