DTC B10A0-11: Rear Wiper Switch Circuit Malfunction (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

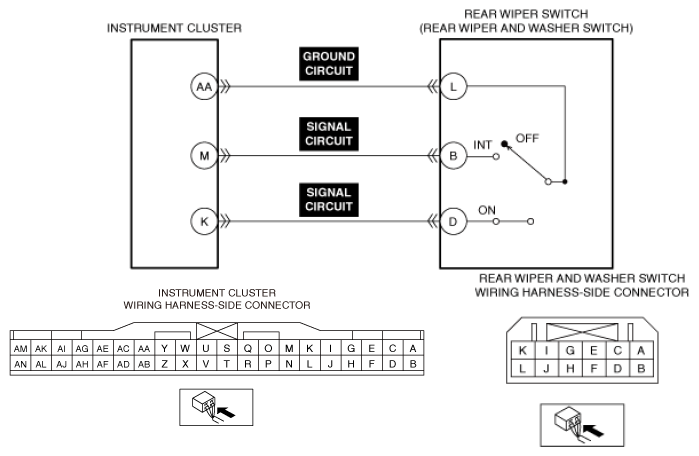

DTC B10A0:11 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Rear wiper switch circuit malfunction
Detection condition	The instrument cluster detects a short to ground in the rear wiper switch circuit.
Fail-safe	Not applicable
Possible cause	Rear wiper and washer switch connector or terminal malfunction Rear wiper switch malfunction Instrument cluster connector or terminal malfunction Short to ground in rear wiper switch signal circuit Instrument cluster malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
