DTC B1007-62: Dimmer Switch Circuit Malfunction (BCM) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

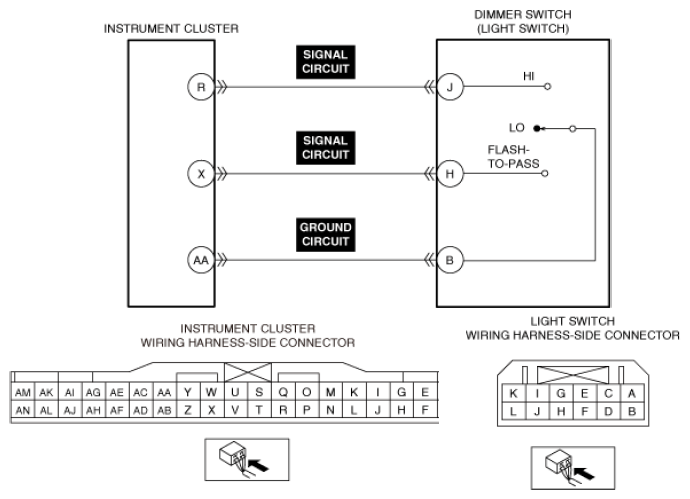

DTC B1007:62 (BCM) (US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Dimmer switch circuit malfunction
Detection condition	The instrument cluster received the error signals from the dimmer switch.
Fail-safe	Not applicable
Possible cause	Light switch connector or terminal malfunction Dimmer switch malfunction Instrument cluster connector or terminal malfunction Short to ground in dimmer switch signal circuit Open circuit in dimmer switch signal circuit Open circuit in dimmer switch ground circuit Instrument cluster malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
