DTC B0054-11: Rear Buckle Switch (Center) Circuit Malfunction (BCM): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

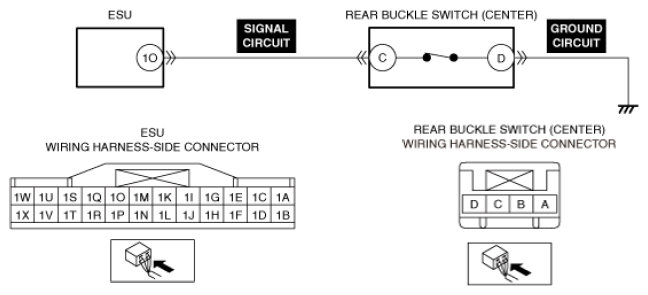

DTC B0054:11 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
REAR BUCKLE SWITCH (CENTER) CIRCUIT MALFUNCTION |
| Detection condition |
- The electrical supply unit (ESU) detects a short to ground in the rear buckle switch (center) circuit for a continuous 2 times.
Preconditions
- The rear seat belt (center) is unfastened.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Rear buckle switch (center) connector or terminal malfunction
- Electrical supply unit (ESU) connector or terminal malfunction
- Rear buckle switch (center) malfunction
- Short to ground in rear buckle switch (center) signal circuit
- Electrical supply unit (ESU) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
