Sunroof Motor Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION (US) .)

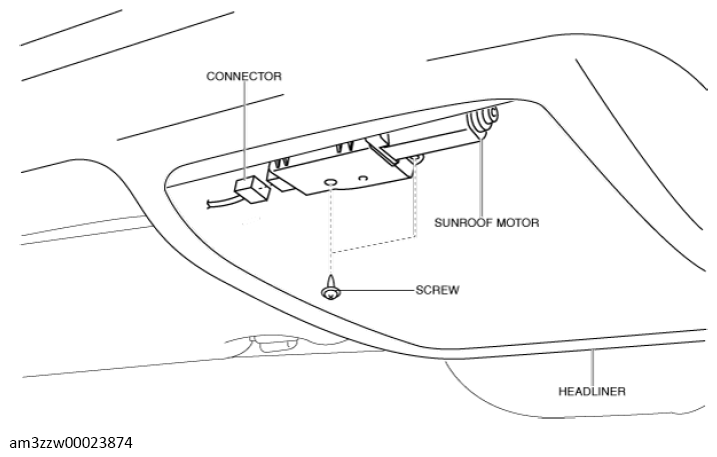

- Disconnect the connector.
- Remove the screws.
- Remove the sunroof motor.
- Install in the reverse order of removal.
