Glass Panel Adjustment

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Fully close the glass panel.
Measure the gap and height between the glass panel and body.
Loosen the installation screws and adjust the glass panel.

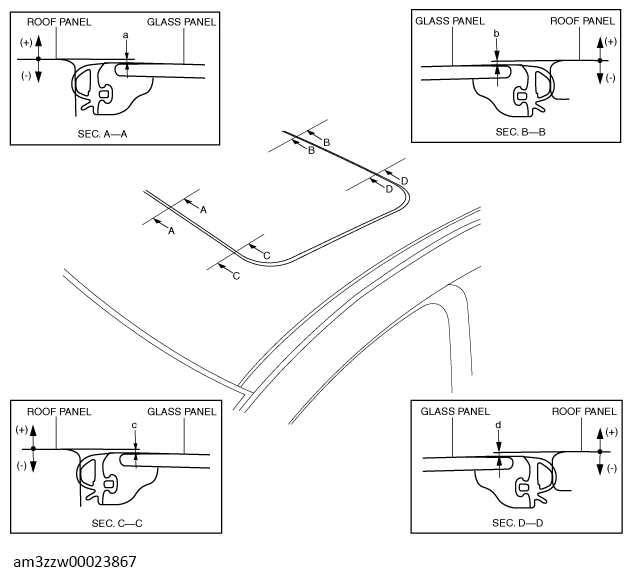

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -0.4-2.2 mm {-0.01-0.08 in}
2. -0.4-2.2 mm {-0.01-0.08 in}
3. -0.6-2. 0 mm {-0.02-0.07 in}
4. -0.4-2.2 mm {-0.01-0.08 in}
Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION .)
When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the directions of the arrows shown in the illustration, verify that resistance with the plastic card can be felt.

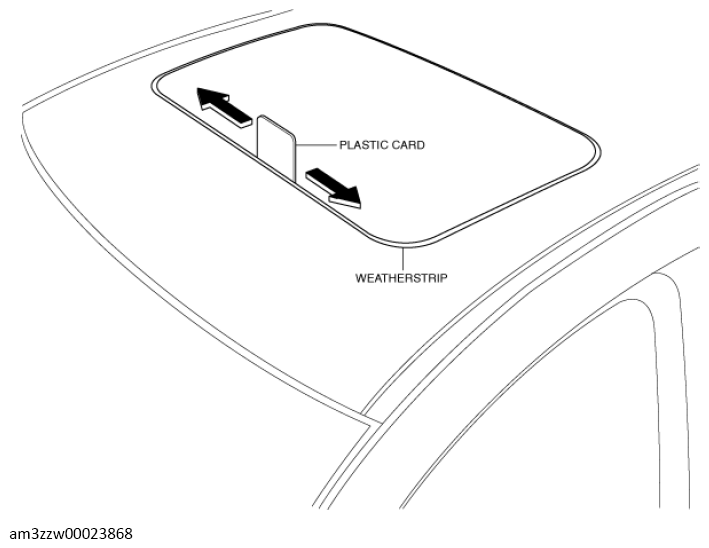

Courtesy of MAZDA MOTORS CORP.
- If the glass panel is not sealed, perform Steps 3- 4 and adjust again.
