Instrumentation/Driver Info. Location Index (Us): Exterior

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

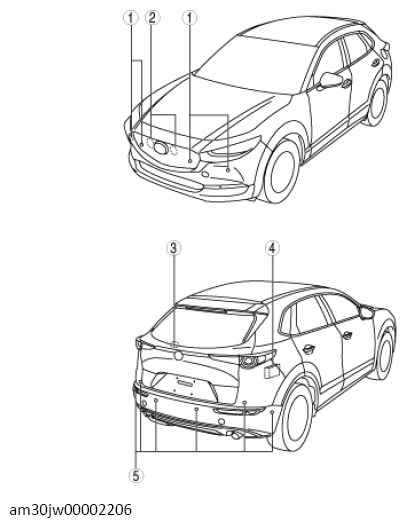

COMPONENT DESCRIPTION

1	Front ultrasonic sensor (with parking sensor system, with front ultrasonic sensor) (See FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION .) (See FRONT ULTRASONIC SENSOR INSPECTION .) (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
2	Horn (See HORN REMOVAL/INSTALLATION .) (See HORN INSPECTION .)
3	Rear Notification and warning speaker (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
4	Parking assist unit (ultrasonic) (See PARKING ASSIST UNIT (ULTRASONIC) REMOVAL/INSTALLATION .) (See PARKING ASSIST UNIT (ULTRASONIC) INSPECTION .)
5	Rear ultrasonic sensor (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION .) (See REAR ULTRASONIC SENSOR INSPECTION .) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION .)
