Fuel Gauge Sender Unit (Sub)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (VIN L (US))]
.) (See BEFORE SERVICE PRECAUTION [SKYACTIV-G (VIN M (US))]
.)WARNING:
- If the fuel gauge level indicates 8/16 or more, refer to the [FUEL DRAINING PROCEDURE] and drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-G (VIN L (US))] .) (See FUEL DRAINING PROCEDURE [SKYACTIV-G (VIN M (US))] .)
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

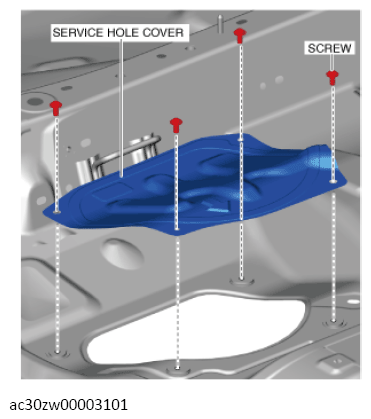

- Remove the screws.
- Remove the service hole cover.

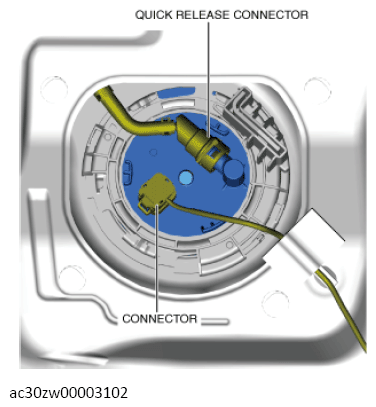

- Disconnect the connector.
- Disconnect the quick release connector. (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .) (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)

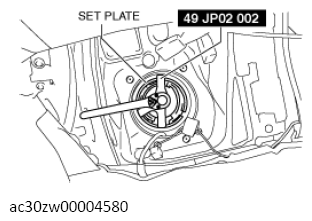

- Install the SST shown in the illustration.
- Remove the set plate component using the SST. (See SET PLATE COMPONENT INSTALLATION NOTE .)

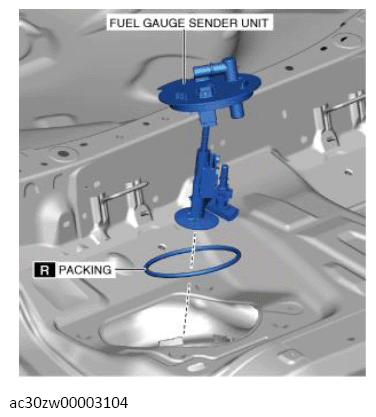

- Remove the fuel gauge sender unit and packing.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION [SKYACTIV-G (VIN L (US))] .) (See AFTER SERVICE PRECAUTION [SKYACTIV-G (VIN M (US))] .)
