Rear Housing Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After applying silicone sealant (TB1217D or equivalent), install the rear housing within 10 min. and then tighten all bolts within 5 min.

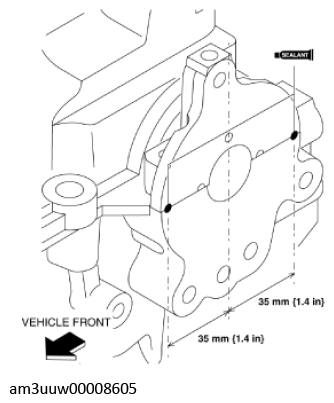

Apply silicone sealant (TB1217D or equivalent) to the areas shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

Thickness

3.0-7.0 mm {0.12-0.27 in}
Install the rear housing.

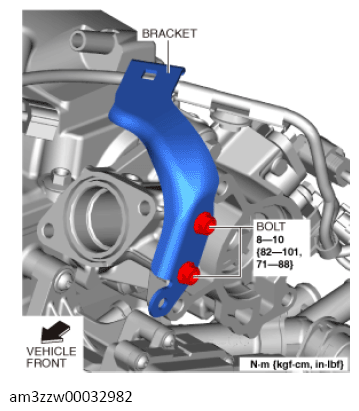

Install the bracket shown in the illustration.

Fig 1: Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Connect the exhaust CMP sensor connector.

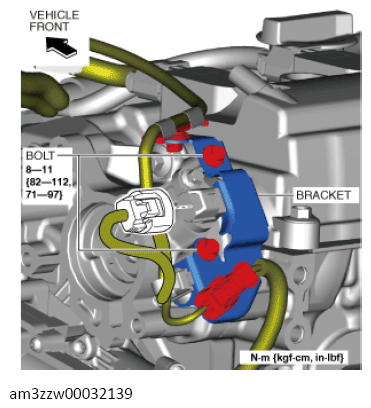

Install the bracket shown in the illustration.

Fig 2: Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

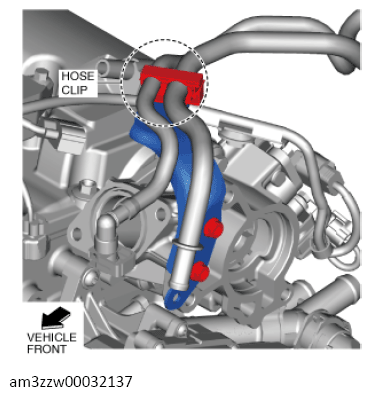

Connect the hose clips shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Install the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION .)
