Breather Hose Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

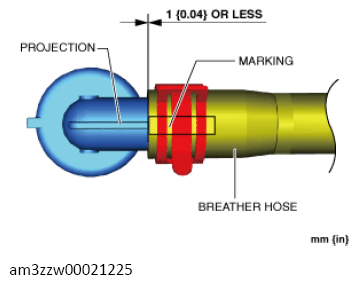

- Align the breather hose marking with the projection on the pipe as shown in the illustration and assemble.
Fuel tank side
 Courtesy of MAZDA MOTORS CORP.
|
- Align the breather hose marking with the fuel-filler pipe marking as shown in the illustration and assemble.
 Courtesy of MAZDA MOTORS CORP.
|
