Fuel Line Safety Procedure

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the fuel-filler cap to release the pressure inside the fuel tank.

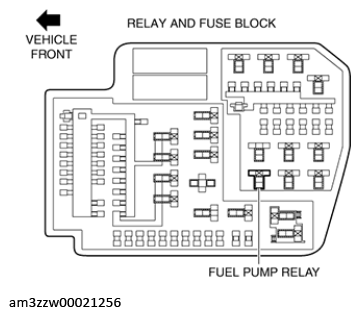

  3. Remove the fuel pump relay.
    G13174930Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the high pressure fuel pump connector.
  5. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  6. Start the engine.
  7. After the engine stalls, crank the engine 2-3 times.
  8. Switch the ignition to off.
  9. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  10. Install the fuel pump relay.
  11. Connect the high pressure fuel pump connector.
