DTC U213D-00: Can Communication: Communication Error To TCM (Local Can) (Us): Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC U213D:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE

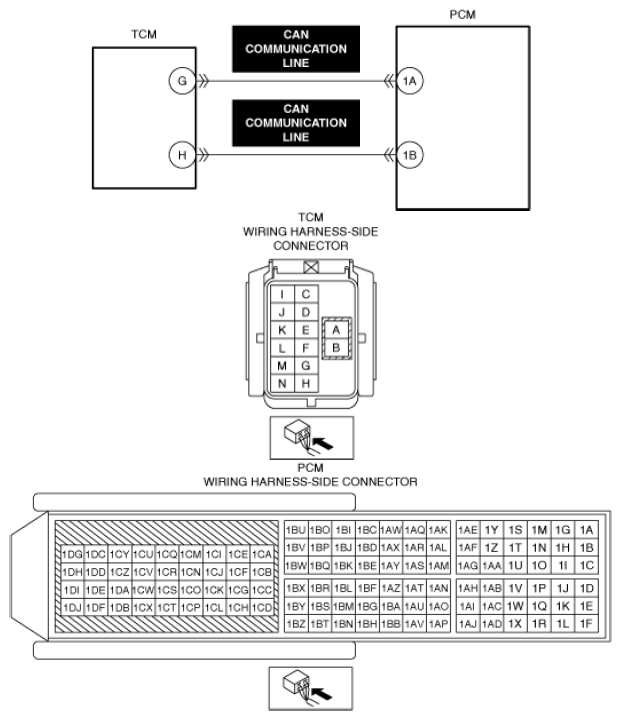

System malfunction location	CAN communication: communication error to TCM (Local CAN)
Detection condition	Communication error between the PCM and TCM continues for 5 s or more.
Fail-safe	Controls the turbine rotation signal at 0. Inhibits the AT torque reduction request.
Possible cause	CAN communication line malfunction between PCM and TCM TCM malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
