DTC U0336-00: Sophisticated Airbag Sensor (SAS) Control Module Error: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC U0336:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Sophisticated Airbag Sensor (SAS) control module error |
| Detection condition |
- When any of the following conditions is met:

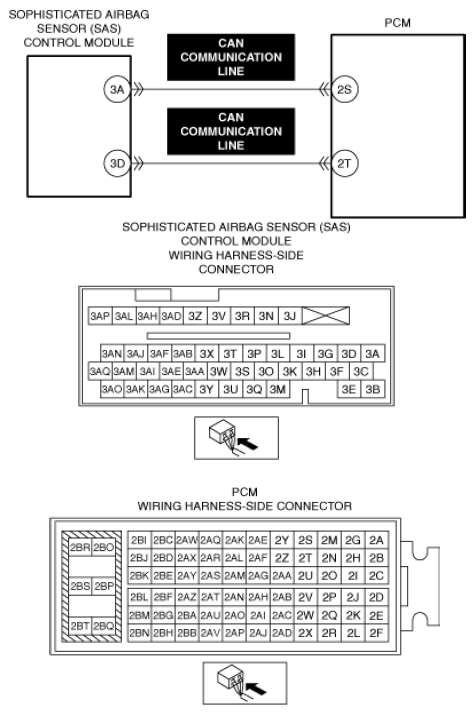

- CAN communication line malfunction between Sophisticated Airbag Sensor (SAS) control module and PCM
- Sophisticated Airbag Sensor (SAS) control module internal malfunction
|
| Fail-safe |
|
| Possible cause |
- CAN drive error (Sophisticated Airbag Sensor (SAS) control module or PCM)
- CAN communication line malfunction between Sophisticated Airbag Sensor (SAS) control module and PCM
- Sophisticated Airbag Sensor (SAS) control module connector or terminals malfunction
- PCM connector or terminals malfunction
- Sophisticated Airbag Sensor (SAS) control module malfunction
- PCM malfunction
|
