DTC U0315-00: DSC HU/Cm Error: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

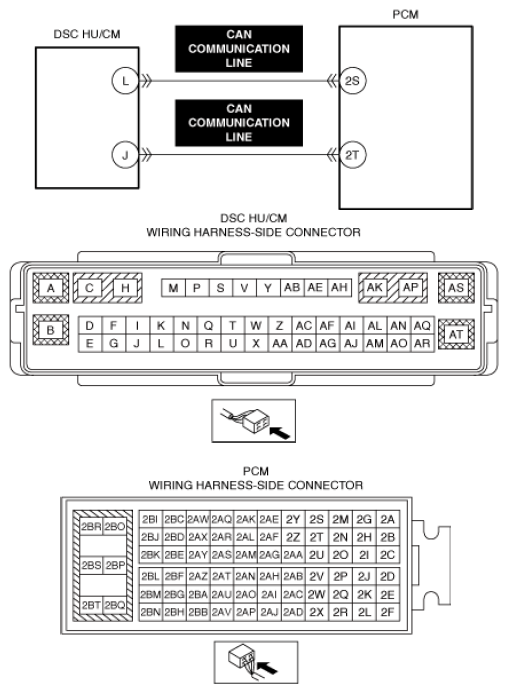

DTC U0315:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	DSC HU/CM error
Detection condition	When any of the following conditions is met: CAN communication line malfunction between DSC HU/CM and PCM DSC HU/CM internal malfunction
Fail-safe	Not applicable
Possible cause	CAN drive error (DSC HU/CM or PCM) CAN communication line malfunction between DSC HU/CM and PCM DSC HU/CM connector or terminals malfunction PCM connector or terminals malfunction DSC HU/CM malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
