DTC P3427-00: OCV For No. 4 Cylinder Deactivation Circuit Low Input (Us): Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

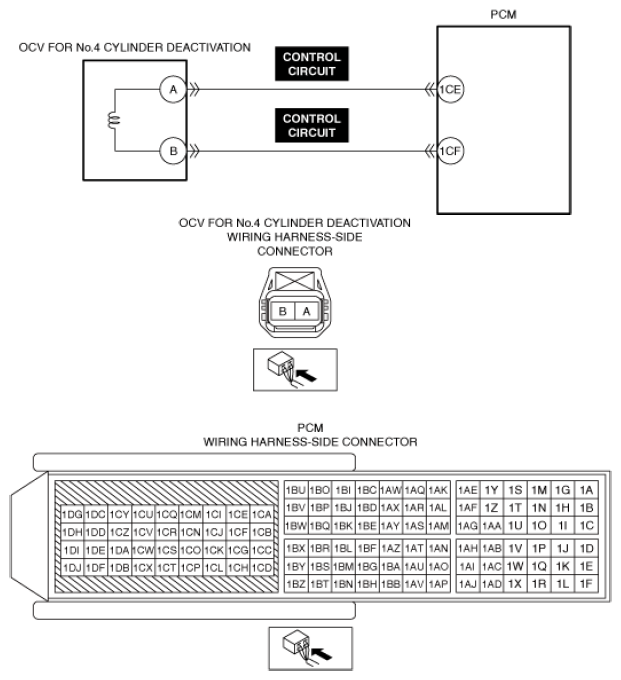

DTC P3427:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
OCV for No. 4 cylinder deactivation circuit low input |
| Detection condition |
- A condition continues for a specified period of time in which the OCV control voltage or current for No. 4 cylinder deactivation relative to the PCM control is less than the specified value.
|
| Fail-safe |
- Inhibits the cylinder deactivation control.
|
| Possible cause |
- OCV for No. 4 cylinder deactivation connector or terminals malfunction
- PCM connector or terminals malfunction
- Open circuit in OCV for No. 4 cylinder deactivation control circuit
- Short to ground in OCV for No. 4 cylinder deactivation control circuit
- Short circuit in OCV for No. 4 cylinder deactivation control circuits
- OCV for No. 4 cylinder deactivation malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
