With 360°View Monitor System Or Parking Assist System: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
DTC U3000:1C (VEHICLE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE - WITH 360°VIEW MONITOR SYSTEM OR PARKING ASSIST SYSTEM

System malfunction location Malfunction in vehicle control module (VCM) power supply output circuit
Detection condition
  • The vehicle control module (VCM) detects a malfunction in the vehicle control module (VCM) power supply output circuit for 10 s.
Fail-safe (See DTC TABLE [VEHICLE CONTROL MODULE (US)] .)
Possible cause
  • The vehicle control module (VCM) stores DTCs.
    • Vehicle control module (VCM) low power supply voltage input
      • Vehicle control module (VCM) high power voltage input
  • Body control module (BCM) connector or terminal malfunction
  • 360° view monitor control module (with 360° view monitor system)/Parking assist unit (optical) (with parking assist system) connector or terminal malfunction
  • Short to ground in power supply output circuit (rear side)
  • Short to power supply in power supply output circuit (rear side)
  • Open circuit in power supply output circuit (rear side)
  • Forward sensing camera (FSC) connector or terminal malfunction (with forward sensing camera (FSC))
  • Driver monitoring camera unit connector or terminal malfunction (with driver monitoring (DM))
  • Short to ground in power supply output circuit (front side) (with forward sensing camera (FSC) or driver monitoring (DM))
  • Short to power supply in power supply output circuit (front side) (with forward sensing camera (FSC) or driver monitoring (DM))
  • Open circuit in power supply output circuit (front side) (with forward sensing camera (FSC) or driver monitoring (DM))
  • 360° view monitor control module (with 360° view monitor system)/Parking assist unit (optical) (with parking assist system)
  • Forward sensing camera (FSC) malfunction (with forward sensing camera (FSC))
  • Driver monitoring camera unit malfunction (with driver monitoring (DM))
  • Vehicle control module (VCM) malfunction (built into body control module (BCM))

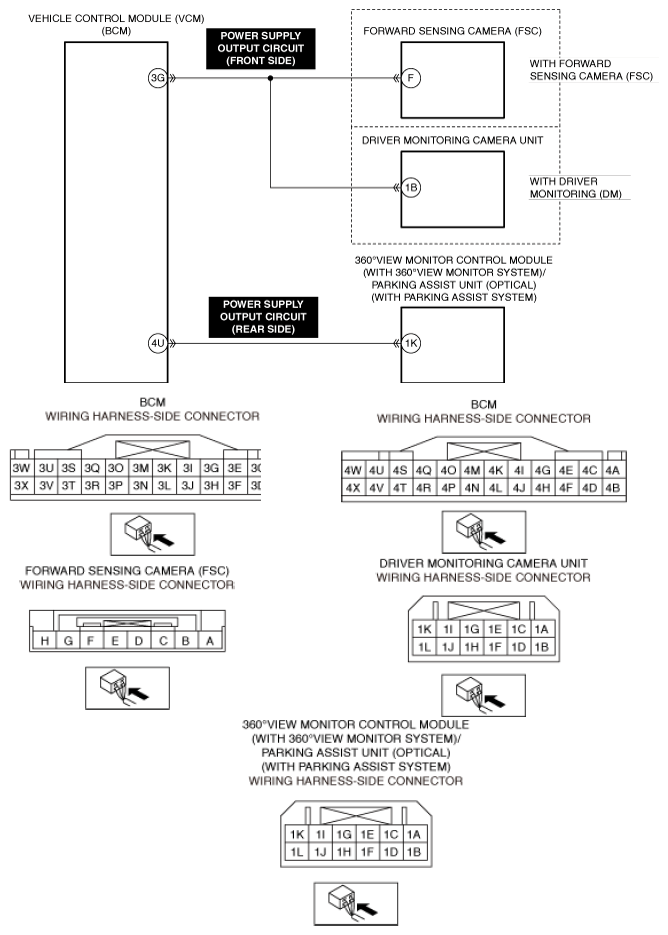

G13561365Courtesy of MAZDA MOTORS CORP.
