Throttle Body Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt shown in the illustration.

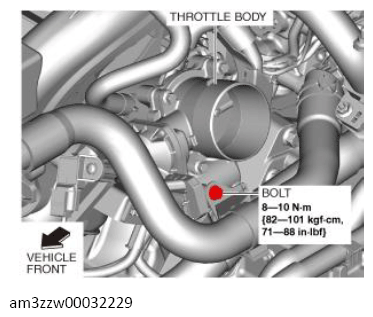

Fig 1: Throttle Body Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the throttle body.
