System Wiring Diagram

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

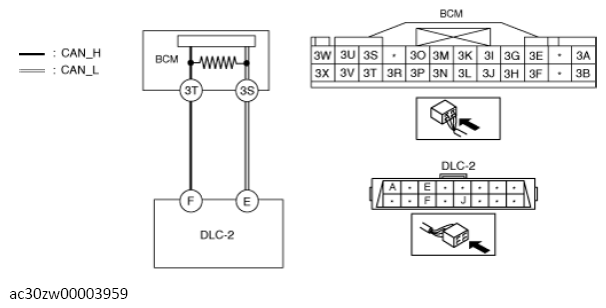

G13561334Courtesy of MAZDA MOTORS CORP.
