Rear Wiper Blade

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the following procedure. (with stopper)
    1. Pull the cap in the direction of the arrows shown in the illustration and detach the cap tabs from the rear wiper arm.
      G13560948Courtesy of MAZDA MOTORS CORP.
    2. Remove the cap.
    3. Remove the stopper.
    G13560949Courtesy of MAZDA MOTORS CORP.

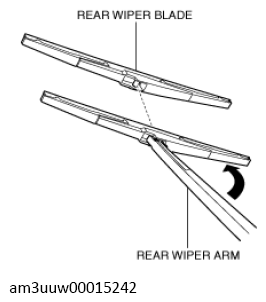

  2. Move the rear wiper blade in the direction of the arrow shown in the illustration and detach the rear wiper blade from the rear wiper arm.
    G13560955Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear wiper blade.
  4. Install in the reverse order of removal.
