Rear Washer Hose C

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION (US) .)
2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
7. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
8. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
9. Shift lever knob (MTX)
10. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
18. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
19. Driver-side knee air bag module
20. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
21. Driver-side air bag module
22. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
23. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
24. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
25. Clock spring
26. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
27. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION (US) .)
28. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
29. Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
30. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
31. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
32. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
33. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
34. Audio panel (with audio panel) (See AUDIO PANEL REMOVAL/INSTALLATION .)
35. CD player (with CD player)
36. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER (US)] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .)
37. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
38. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION (US) .)
39. Driver-side front heat duct No. 2 (See FRONT HEAT DUCT REMOVAL/INSTALLATION (US) .)
40. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
41. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
42. Dashboard (See DASHBOARD REMOVAL (US) .) (See DASHBOARD INSTALLATION (US) .)
43. Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION (US) .)
44. Passenger-side cowl side woofer (See COWL SIDE WOOFER REMOVAL/INSTALLATION (US) .)
Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Remove the wiring harness clip.
Set the dashboard lower insulator aside.
Remove the bolts and nuts.

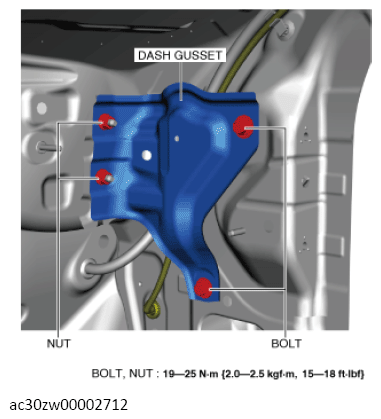

Fig 1: Dash Gusset, Bolts And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the dash gusset.

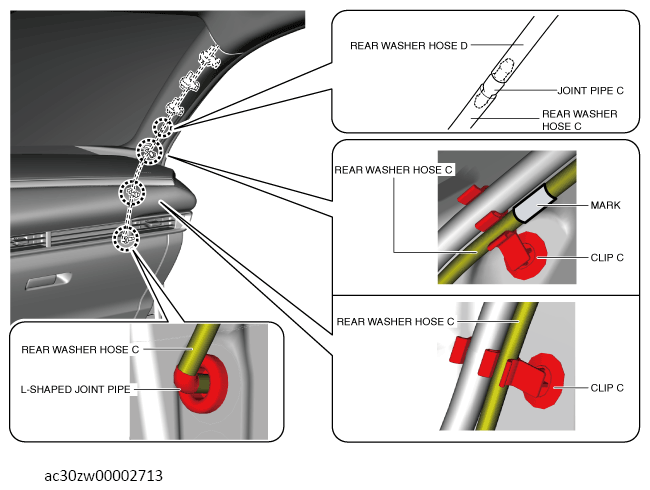

Disconnect rear washer hose C from the L-shaped joint pipe.
Remove the rear washer hose C from clip C.

Courtesy of MAZDA MOTORS CORP.
Disconnect the rear washer hose C from the joint pipe C.
Install in the reverse order of removal.
