Rear Washer Hose A: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the front over fender (RH). (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Set the front mudguard (RH) aside.

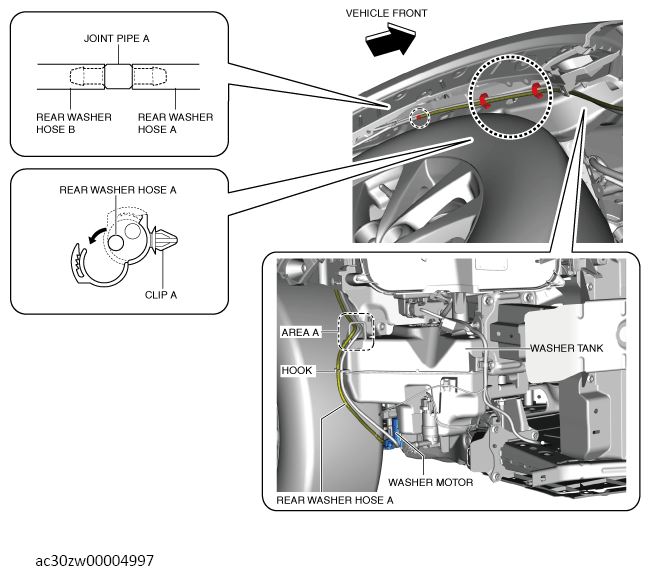

Disconnect the rear washer hose A from the washer motor.

Courtesy of MAZDA MOTORS CORP.
Remove the rear washer hose A from the washer tank hook. (See REAR WASHER HOSE A INSTALLATION NOTE .)
Pull out the windshield washer hose A from area A of the washer tank.
Remove the rear washer hose A from clips A.
Disconnect the rear washer hose A from the joint pipe A and remove it.
Install in the reverse order of removal.
