Front Seat

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

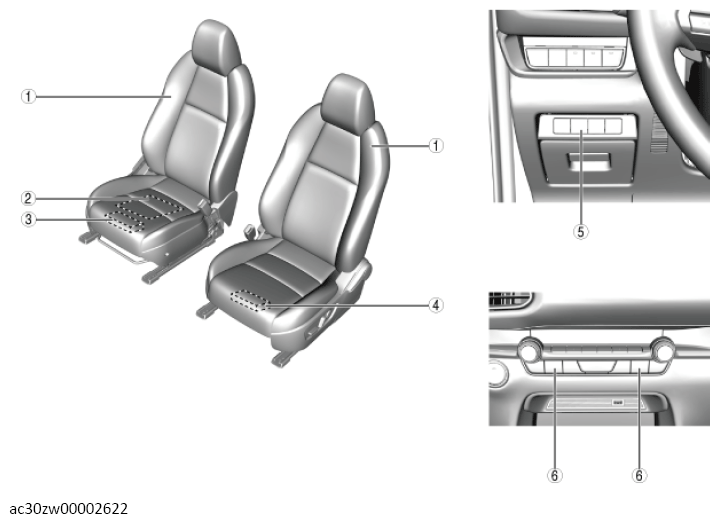

COMPONENT DESCRIPTION

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION (US) .) (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION (US) .) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION (US) .) (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION (US) .) (See LIFT MOTOR INSPECTION .) (See SLIDE MOTOR INSPECTION .) (See RECLINER MOTOR INSPECTION .) (See SEAT WARMER UNIT INSPECTION (US) .)
2	Occupancy sensor (with standard deployment control system) (See OCCUPANCY SENSOR INSPECTION (US) .)
3	Seat warmer control unit (with seat warmer system, without power seat system) (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION (US) .) (See SEAT WARMER CONTROL UNIT INSPECTION .)
4	Position memory control unit/Seat warmer control module (with position memory system) (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION (US) .) (See POSITION MEMORY CONTROL MODULE INSPECTION (US) .) (See POSITION MEMORY SYSTEM MEMORY CLEARING .) (See SEAT POSITION INITIAL LEARNING .) (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION (US) .) (See SEAT WARMER CONTROL UNIT INSPECTION .)
5	Position memory switch (with position memory system) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .) (See POSITION MEMORY SWITCH INSPECTION .)
6	Seat warmer switch (with seat warmer system) (See SEAT WARMER SWITCH REMOVAL/INSTALLATION .)
