Front seat cushion

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to off.
  2. Disconnect the negative battery terminal and wait1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Disconnect the passenger-side seat warmer unit connector.
  4. Inspect for continuity between the passenger-side seat warmer unit connector terminal 6A-1K (without driver-side power seat)/6A-6B (with driver-side power seat).

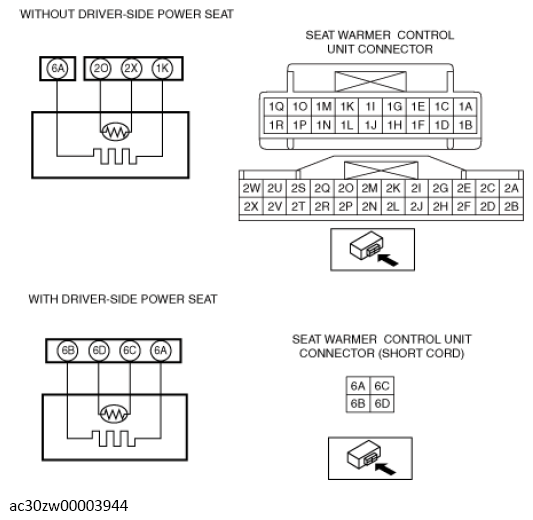

    G13560249Courtesy of MAZDA MOTORS CORP.

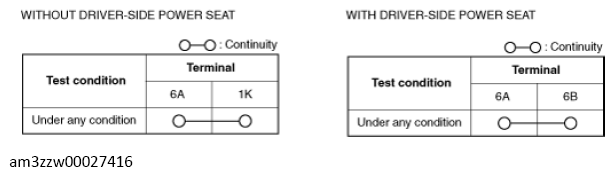

    G13560250Courtesy of MAZDA MOTORS CORP.
    • I not as indicated in the table, replace the front seat cushion pad.
  5. Measure the resistance between the passenger-side seat warmer unit connector terminals 2O and 2X (without driver-side power seat)/, 6C and 6D (with driver-side power seat), and verify that the condition is as indicated in the table.
    G12183932Courtesy of MAZDA MOTORS CORP.
    • If the thermistor characteristic is not as shown in the graph, replace the front seat cushion pad.
