Without Position Memory System

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the head restraint.
  2. Remove the front seat installation bolts. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
  3. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
  4. Perform the following procedure.
    1. Switch the ignition off.
    2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  5. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

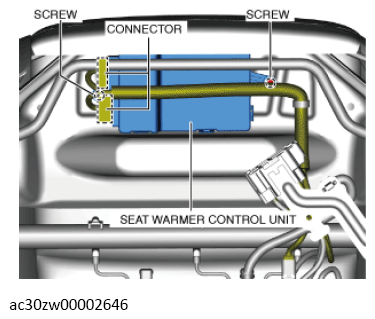

  6. Disconnect the seat warmer control unit connector.
    G13560242Courtesy of MAZDA MOTORS CORP.
  7. Remove the screws.
  8. Remove the seat warmer control unit.
  9. Install in the reverse order of removal.
