Rear Seat Cushion Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When performing the procedure with a rear seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

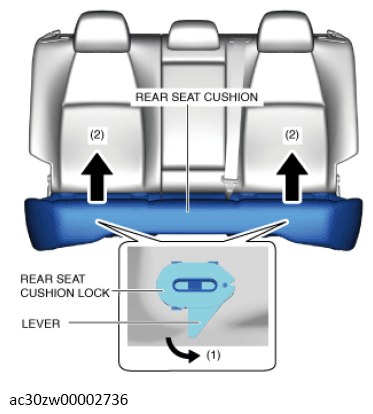

While moving the rear seat cushion lock levers in the direction of arrow (1) shown in the illustration, lift up the rear seat cushion in the direction of arrows (2) and detach the rear seat cushion lock from the rear seat cushion.

Courtesy of MAZDA MOTORS CORP.

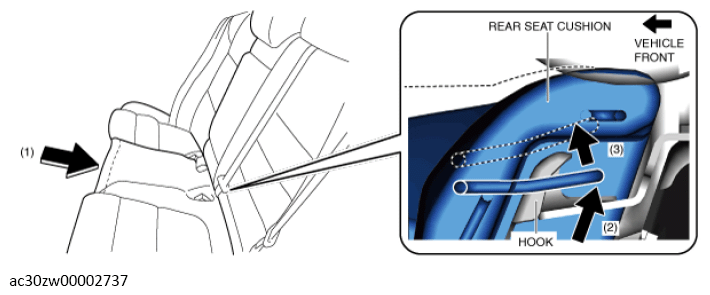

While pressing the rear seat cushion in the direction of arrow (1) shown in the illustration, lift up the rear seat cushion in the direction of arrow (2), move it in the direction of arrow (3), and detach it from the hook.

Courtesy of MAZDA MOTORS CORP.
Remove the rear seat cushion.
Install in the reverse order of removal. (See REAR SEAT CUSHION INSTALLATION NOTE .)
