Rear Seat Cushion Lock Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

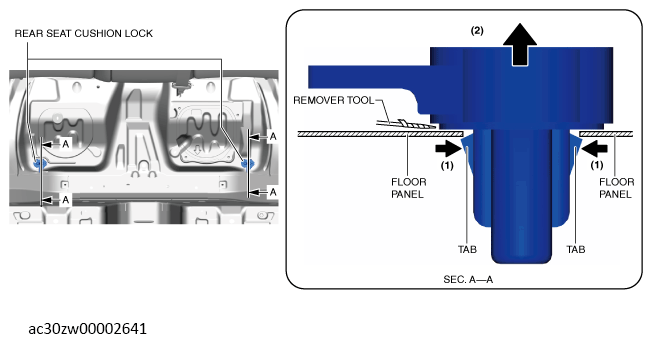

- Move the remover tool in the direction of arrows (1) shown in the illustration and disengage the tabs.
- Remove the rear seat cushion lock in the direction of arrow (2) shown in the illustration.
- Install in the reverse order of removal.
