Power Seat Switch Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop service information before handling the front seat (side air bag integrated).
- Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the power seat switch. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION (US) .)

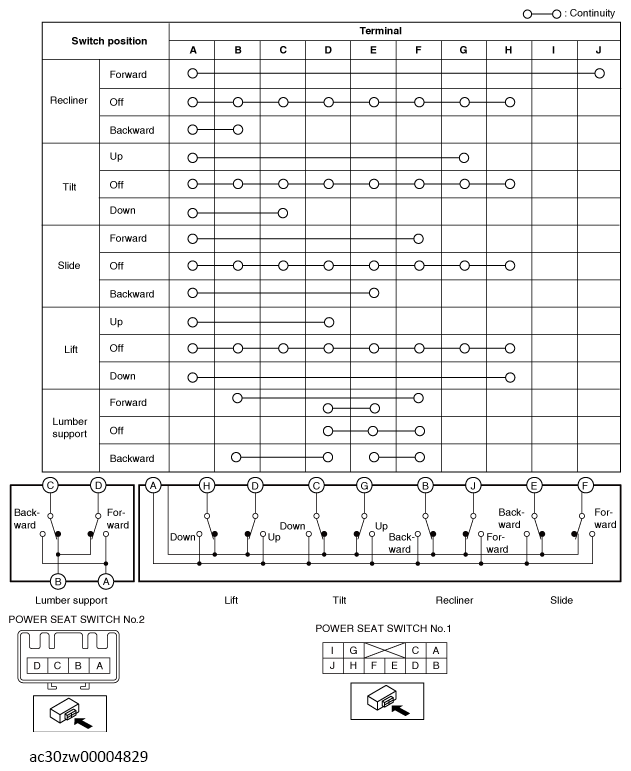

- Verify that the continuity between the power seat switch terminals is as indicated in the table.
- If not as specified, replace the front seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)
