Purge Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
Disconnect the high pressure fuel pump connector.

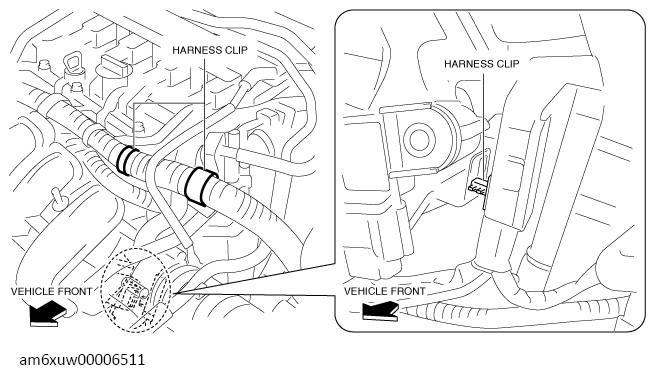

Disconnect the harness clip as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

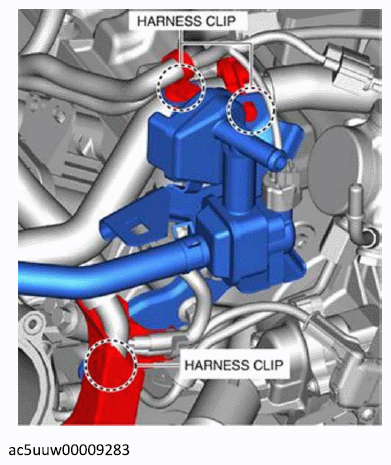

Disconnect the harness clip as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Disconnect the coolant control valve connector. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)

Remove in the order indicated in the table.

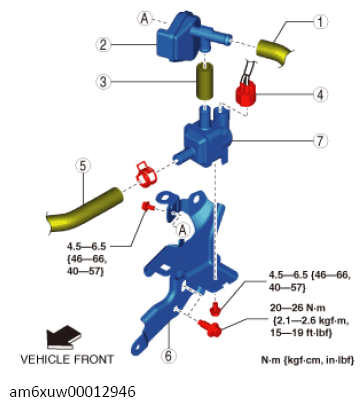

Fig 1: Purge Solenoid Valve Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Evaporative hose No. 1 (See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .)
2	Catch tank
3	Evaporative hose No. 2
4	Purge solenoid valve connector
5	Evaporative hose No. 3 (See EVAPORATIVE HOSE NO. 3 INSTALLATION NOTE .)
6	Purge solenoid valve bracket
7	Purge solenoid valve

Install in the reverse order of removal.
