Fuel Tank Side (AWD)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

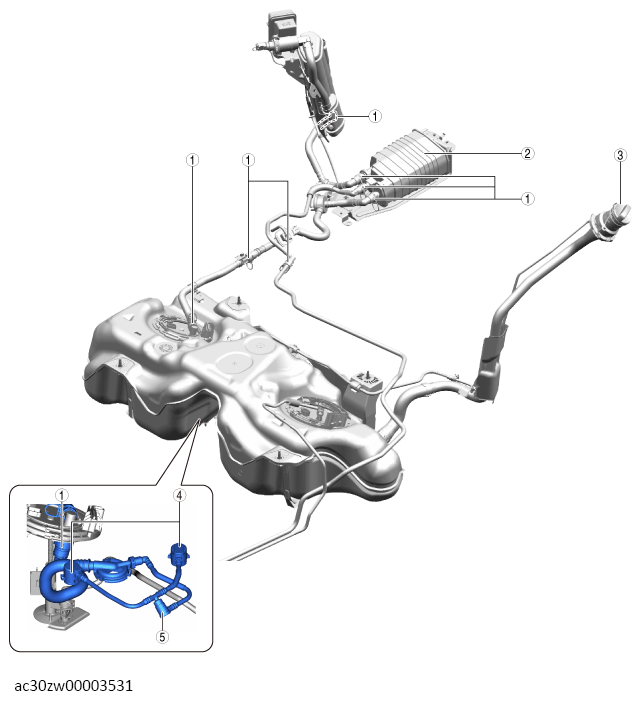

COMPONENT DESCRIPTION
| 1 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 2 | Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION .) (See CHARCOAL CANISTER INSPECTION .) |
| 3 | Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .) (See FUEL-FILLER CAP INSPECTION .) |
| 4 | Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION .) (See ROLLOVER VALVE INSPECTION .) |
| 5 | Check valve (See CHECK VALVE REMOVAL/INSTALLATION .) (See CHECK VALVE INSPECTION .) |
