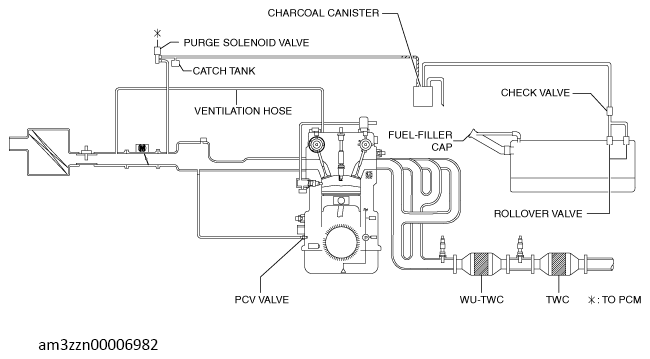

Except U.S.A. And CANADA

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
G13557426Courtesy of MAZDA MOTORS CORP.
