U.S.A. and CANADA (Charcoal canister (main)): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

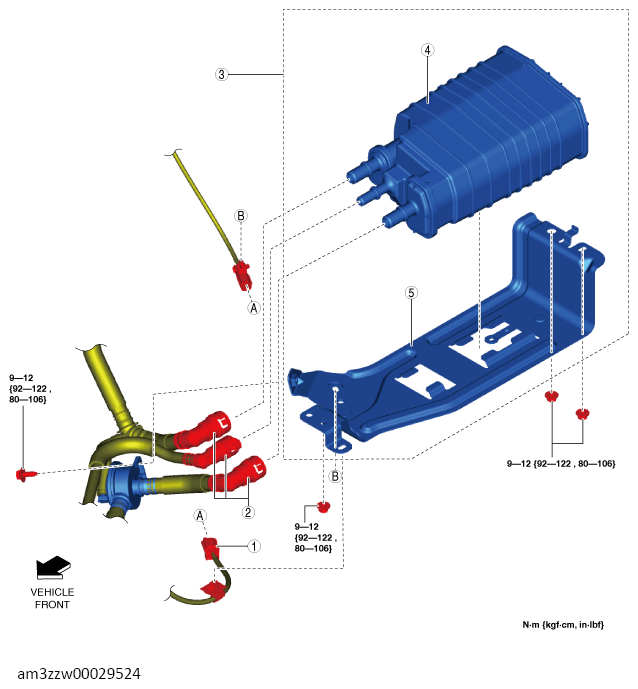

Fig 1: Charcoal Canister - Main Components With Torque Specification (U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Wiring harness connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
3	Charcoal canister (main) component (See CHARCOAL CANISTER (MAIN) COMPONENT INSTALLATION NOTE .)
4	Charcoal canister (main) (See CHARCOAL CANISTER (MAIN) REMOVAL NOTE .)
5	Charcoal canister (main) bracket
