Airflow inspection (Except U.S.A. And CANADA)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

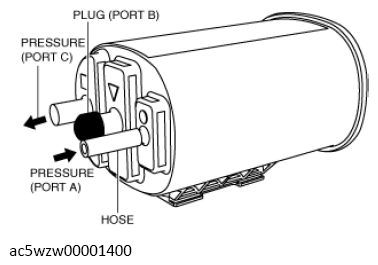

- Perform the following procedure to verify the charcoal canister airflow. (Between port A and port C
)
- Plug the port B.
- Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port A.
- Verify that there is airflow fro port C.
- If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
- Plug the port B.

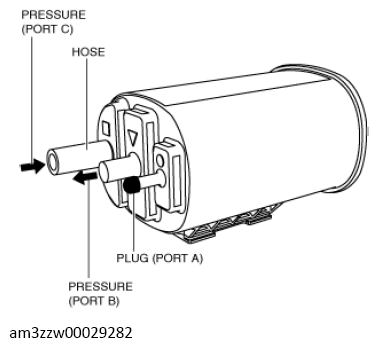

- Perform the following procedure to verify the charcoal canister airflow. (Between port B and port C
)
- Plug the port A.
- Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port C.
- Verify that there is airflow from port B.
- If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
- Plug the port A.
