U.S.A. And CANADA
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)

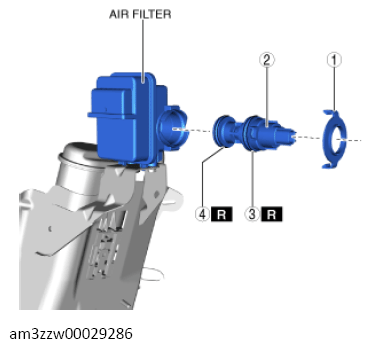

- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION
1 Blind cap 2 CV solenoid valve
(See CV SOLENOID VALVE REMOVAL NOTE .)
(See CV SOLENOID VALVE INSTALLATION NOTE .)3 O-ring No. 1 4 O-ring No. 2
