Rear Housing Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION .)

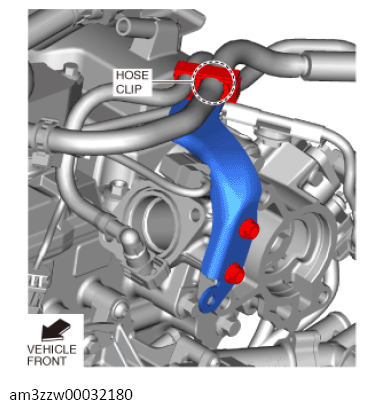

  2. Disconnect the hose clips shown in the illustration.
    G13557309Courtesy of MAZDA MOTORS CORP.
  3. Remove the bracket shown in the illustration.

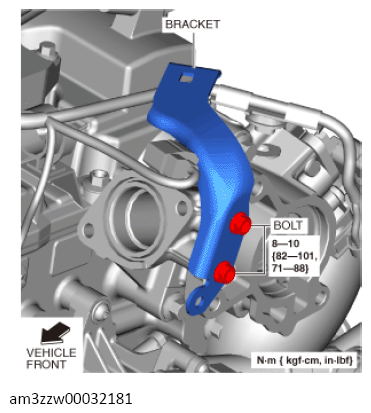

    Fig 1: Bracket Bolts With Torque Specification
    G13557310Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the exhaust CMP sensor connector.
  5. Remove the bolts shown in the illustration and set the bracket aside so that it does not interfere with the servicing.

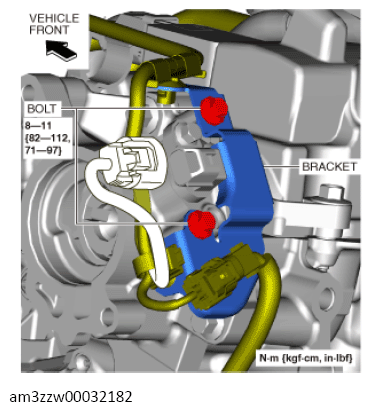

    Fig 2: Bracket Bolts With Torque Specification
    G13557311Courtesy of MAZDA MOTORS CORP.
  6. Remove the rear housing.
